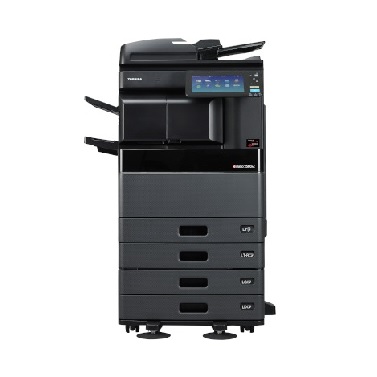

Color - e-STUDIO2010AC / 2510AC
e-STUDIO2010AC / 2510AC
EVERY BUSINESS IS UNIQUE.
That’s why Toshiba offers the latest customisable solutions that can be tailored to meet your needs. Toshiba solutions help you simplify complex tasks while managing diverse information, efficiently and safely to maximize your productivity
Simple, Smart and Stylish.
A new 10.1” tablet-style touch screen with an embedded web browser is easy to use and customisable to meet your needs. Flexible integration with third-party solutions applications, an embedded web browser brings the workflow to one location, at your fingertips. This is all part of the bold new look being introduced across our new e-STUDIO series.
Operability
Check and proof your work on the fly with FAX Preview (of received FAX) and an enhanced scan preview complete with the ability to rotate theimage and change the page.
Seamless Connectivity To The Cloud
Optional e-BRIDGE Plus Connectors for Microsoft OneDrive, Google Drive and Dropbox let you send your documents directly to or print from these cloud services via the MFP. Supports Business Cloud Services (Office 365) with authentication by NFC.
Enhanced Customising Functions
So you can enjoy greater userability we have enhancemed the User Interface customising functions and strengthened our embedded apps platform. We've also enhanced the scanning function by allowing you to customise the scan size.
| Copying Process | Indirect electrostatic photographic method |
| Print & Copy Speed | 20/25cpm |
| Warm-up Time Approx. | 21 seconds |
| Paper size / weights | Drawers: A3 -A5R/ 60 - 163 gsm |
| Stack Feed Bypass: | A3 - 100 x 148 mm / 60 - 209 gsm |
| ADU: | A5R / 60 - 163 gsm |
| PFU (Opt. MY-1047): | A3 - A5R / 60 - 163 gsm |
| PFP (Opt. KD-1058): | A3 - A5R / 60 - 163 gsm |
| LCF (Opt. KD-1059LT): | A4 - 64 - 105 gsm |
| Optional Envelope Cassette: | A4R,B5R,A5R/ 60 - 256 gsm |
| 100 X 162 mm - 240 X 380 mm / 60 - 85 gsm (envelops) | |
| Paper Capacity (STD) | Drawer x 1 : 250 sheets x 1 |
| Stack Feed Bypass: 100 sheets | |
| Paper Capacity (Option) | Optional PFU: 550 sheets |
| Optional PFP: 550 sheets | |
| Optional drawer for PFP: 550 sheets | |
| Optional LCF (Pedestal type): 2000 sheets | |
| Optional envelope cassette: 550 sheets (only A4-R), 50mm (Envelope) | |
| Default setting of Std. Drawers | A4 |
| Max. Paper Capacity | 2,900 sheets (w/Optional LCF) |
| Processor | Intel E3825 1.33GHz(Dual Core) |
| Memory | 2 GB (Main memory + Page memory) |
| HDD | 320 GB Toshiba Secure HDD |
| Dimensions | W575 x D585 x H662 (mm) |
| *Height at original glass | (W/ ADU and SFB ; Std.) |
| Weight | Approx. less than 57 kg *Including drum |
| Power Consumption | Max. 2.0kW (220 - 240V) |
| Super sleep: 0.7W |
| Resolution | |
| Printing (B&W) | 600 dpi x 600 dpi, 5bit |
| 600 dpi x 1200 dpi, 1bit (PS) | |
| Printing (Full Colour) | 600 dpi x 600 dpi, 5bit |
| 600 dpi x 1,200 dpi, 1bit (PS driver) | |
| Page Description Language | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Supported OS (Windows) | Windows Vista SP2 (32 bit)(64 bit) |
| Windows 7 SP1 (32bit)(64bit) | |
| Windows 8/8.1 (32 bit)(64 bit) | |
| Windows 10 (32 bit)(64 bit) | |
| Windows Server 2008 SP2 (32 bit)(64 bit) | |
| Windows Server 2008 R2 SP1 (64 bit) | |
| Windows Server 2012/R2 (64 bit) | |
| Windows Server 2016 (64 bit) | |
| Supported OS (Macintosh) | Max OS X 10.4.11, 10.5.7, 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 |
| Supported OS (Unix Filter) | Solaris ( SUN ) V10, 11, HP-UX Ver 11.iv3, AIX ( IBM ) 7.x |
| Supported OS (Linux) | Yes (Redhat Enterprise 5.x,6.x,7.x) |
| Fedora Ver 21,22 | |
| SuSE Linux Enterprise Server Ver.11,12 | |
| Open SuSE Ver.13.1,13.2 | |
| Ubuntu 14.04LTS,15.04 | |
| Debian 7.8, 8 | |
| Interface | 10/100/1000baseT (Std.), USB 2.0 High Speed, Host x 4（Front : Outside x1, Internal x 3(Opt)) |
| Scanning Resolution (A4) | B/W 1 bit mono |
| Grayscale (8bit mono) | |
| Colour ( or ACS) Colour depth: RGB 8bit Colour (24bit) | |
| Scanning Speed (RADF) (A4) | 600 dpi x 600 dpi : 50 page/min |
| 400 dpi x 400 dpi : 62 page/min | |
| 300 dpi x 300 dpi : 73 page/min | |
| 200 dpi x 200 dpi : 73 page/min | |
| 150 dpi x 150 dpi : 73 page/min | |
| 100 dpi x 100 dpi : 73 page/min | |
| Image mode | B&W : (Text, Text/Photo, Photo) |
| Grayscale : (No mode selection) | |
| Colour / ACS : (Text, Photo, Printed) | |
| File Formats | B&W : TIFF-Multi/Single page, PDF-Multi/Single-Page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) |
| Colour/Grayscale : TIFF-Multi/Single page, PDF-Multi/Single Page, XPS-Multi/Single Page, JPEG, Slim PDF, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) | |
| ACS : TIFF-Single page, PDF-Multi/Single page, XPS-Multi/Single Page, DOCX(Opt.), XLSX(Opt.), PPTX(Opt.), Searchable PDF(Opt.) | |
| Scan Agent | Scan to File, Scan to E-mail, Scan to e-Filing, Scan to WS Scan, Scan to USB |
| Max. Original Size | A3 |
| Resolution | |
| Printing (B&W) | 600 dpi x 600 dpi, 5bit |
| 2400 dpi x 600 dpi (with smoothing) | |
| Printing (Full Colour) | 600 dpi x 600 dpi, 5bit |
| PMultiple Copy Qty | 1 to 999 |
| First Copy Time (B&W) | Less than 7.1 seconds |
| First Copy Time (Full Colour) | Less than 9.5 seconds |
| Zoom Range | (Original on glass) 25% to 400% (1% Increment) (Original on glass) 25% to 400% (1% Increment) |
| (Original on RADF) 25% to 200% (1% Increment) | |
| Copy Mode | Black Mode - Text/Photo, Text, Photo, Image smoothing |
| Full Colour Mode - Text/Photo, Text, Photo, Printed Image, Map | |
| Twin Colour Mode - Text/Photo, Text, Printed Image | |
| Mono Colour Mode - (applicable to 10 colours) -Text/Photo, Text, Printed Image | |
| Auto Colour Selection (ACS) Mode - Text/Photo, Text, Printed Image | |
| Gradation | 256steps |
| Compatibility | Super G3, G3 |
| Data Compression Method | JBIG, MMR, MR, MH |
| Modem Speed | 33.6kbps --2.4Kbps (automatic fallback) |
| Transmission Speedy | Approx. 3 seconds |
| Broadcast Transmission | Max. 200 Groups 400 Destinations |
| PLATEN COVER | KA-5005PC |
| RADF | MR-3031 |
| ADU | Std. |
| Bypass Tray – MJ-1037 | Std. |
| PFU | MY-1047 |
| PFP | KD-1058 |
| Drawer Module for PFP | MY-1048 |
| Envelope cassette Option | MY-1049 |
| LCF | KD-1059 A4 |
| Desk (TSE) | MH-5000 |
| Job Separator | MJ-5014 |
| Inner Finisher | MJ-1042 |
| Saddle Stich Finisher | MJ-1110 |
| Bridge kit (for finishing option) | KN-5005 |
| Hole Punch Unit for Inner Finisher | MJ-6011N (2 or 3 holes /70mm or 108mm pitch) |
| MJ-6011E (2 holes (80mm pitch) | |
| MJ-6011F (4 holes / 80mm pitch) | |
| Hole Punch Unit for console Finisher | MJ-6105N (2 or 3 holes /70mm or 108mm pitch) |
| MJ-6105E (2 holes (80mm pitch) | |
| MJ-6105F (4 holes / 80mm pitch) | |
| Staple cartridge for Finisher | STAPLE-2400 |
| Staple cartridge for saddle | STAPLE-3100 |
| Work Tray | KK-5005 |
| Manual Pocket (New) | KK-5008 |
| Accessible Arm | KK-2560 |
| Accessory Tray | GR-1250 |
| Panel Ten Key Option | GR-1260 |
System Options / Accessories
| Fax Unit / 2nd Line | GD-1370 New |
| Wireless LAN /Bluetooth Module | GN-4020 New |
| USB Hub option | GR-1270 New |
| Card Reader Holder | GR-1290 New |
| Hardcopy Security Kit | GP-1190A |
| Harness kit for card controller | GQ-1270 |
| Harness kit for coin controller | GQ-1280 |
Enabler Options
| Data Overwrite enabler | GP-1070 |
| Meta scan enabler | GS-1010 |
| IPSec enabler | GP-1080 |
| Unicode Font enabler | GS-1007 |
| Embedded OCR enabler | GS-1080 (for 1 License) / GS-1085 (for 5 Licenses) |
| Multi station print enabler | GS-1090 (for 1 License) / GS-1095 (for 5 Licenses) |
