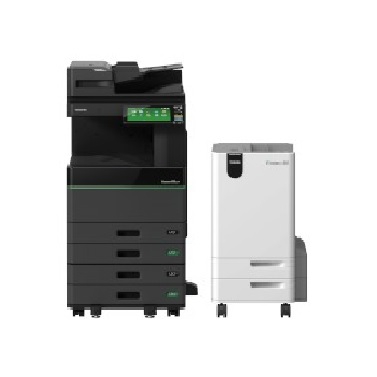

Hybrid MFP - e-STUDIO3508LP / 4508LP
e-STUDIO3508LP / 4508LP
CONNECT. INTEGRATE. SIMPLIFY AND REUSE.
Toshiba's hybrid technology combines conventional printing with erasable printing, which allows you to reuse paper over and over again. One single device which easily connects, integrates and simplifies your workflows — and also helps save valuable resources.
- - A true 5-in-1 printing solution offering Print, Copy, Scan, Fax, Erase and Reuse
- - Realise paper consumption reductions of up to 80% and minimise the impact of document creation
- - Reduce CO2e emissions by reusing paper
- - Easy integration and usage for enhanced efficiency in a green office
- - Print in regular black or erasable blue - with only one device
The world's first MFP to incorporate a unique erasable toner enabling the output to be erased and re-used multiple times. By reducing paper consumption, not only means lower cost but a smaller, more eco-friendly carbon footprint.
| Copying/Printing Process | Indirect electrostatic photographic method |
| Print & Copy Speed | 25/45 ppm A4 (BK) 35/35 ppm A4 (EB) |
| Warm-up Time Approx. | Less than 5.9s BK / Less than 7.8s EB (eS3508LP) Less than 4.4s BK / Less than 7.8s EB (eS4508LP) |
| Paper size / weights | BK 1st drawer & 2nd Drawer : A3-A5R/ 60 - 256 gsm EB 1st drawer & 2nd Drawer : A3-A5R/ 64 - 80 gsm |
|
Optional Envelope Cassette: Only BK |
A4R,B5R,A5R/ 60 - 256 gsm |
| 100 x 162 mm - 240 x 380 mm / 60 - 85 gsm (envelops) | |
| LCF | A4 / 64 - 105 gsm |
| Stack Feed Bypass |
BK A3-A5R 100 x 148mm 60 - 256gsm EB A3 - A5R 64 - 80gsm |
| RADF | 100 Sheets |
| DSDF | 300 Sheets |
| Paper Capacity | Standard |
| Drawer: | 550 sheets x 2 |
| Stack Feed Bypass: | 100 sheets |
| - Optional | |
| Optional PFP: | 550 sheets (BK) / 400 sheets (EB) |
| Optional drawer for PFP: | 550 sheets (BK) / 400 sheets (EB) |
| Optional LCF (Pedestal type): | 2000 sheets |
| Optional envelope cassette: | 550 sheets |
| Max. Paper Capacity | 3,200 sheets(*) (w/Optional LCF) |
| Processor | Intel E3825 1.33GHz(Dual Core) |
| Memory | 4GB (Main memory + Page memory) |
| HDD | 320 GB Toshiba Secure HDD |
| Dimensions | W660×D644×H1,047 (mm) (W/ ADU and SFB, PFP (or LCF) incl. Stabilizer) |
| Weight | Approx. 58 kg (Incl. Drum / Developer) |
| Power Consumption | Max. 2.0kW (220 - 240V) |
| Super sleep: 0.7W |
| Resolution | 600 dpi x 600 dpi, 5 bit |
| 1200 dpi x 1200 dpi 2 bit | |
| 3,600 dpi x 1,200 dpi (with smoothing)(PS Driver) | |
| Page Description Language | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Operation Systems | Windows Vista SP2 (32 bit)(64 bit) |
| Windows 7 SP1 (32bit)(64bit) | |
| Windows 8/8.1 (32 bit)(64 bit) | |
| Windows 10 (32 bit)(64 bit) | |
| Windows Server 2008 SP2 (32 bit)(64 bit) | |
| Windows Server 2008 R2 SP1 (64 bit) | |
| Windows Server 2012/R2 (64 bit) | |
| Windows Server 2016 (64 bit) | |
| Supported OS (Macintosh) | Max OS X 10.4.11, 10.5.7, 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12 (Sierra) |
| Supported OS (Unix Filter) | Solaris ( SUN ) V10, 11, HP-UX Ver 11.iv3, AIX ( IBM ) 7.x |
| Supported OS (Linux) | Yes (Redhat Enterprise 5.x,6.x,7.x) |
| Fedora Ver 21,22 | |
| SuSE Linux Enterprise Server Ver.11,12 | |
| Open SuSE Ver.13.1,13.2 | |
| Ubuntu 14.04LTS,15.04 | |
| Debian 7.8, 8 | |
| Interface | 10/100/1000baseT (Std.), USB 2.0 High Speed, Host x 4（Front : Outside x1, Internal x 3(Opt)) |
| Resolution | 600 dpi x 600 dpi |
| Scanning Speed (RADF) | 600 dpi x 600 dpi : 50 page/min |
| 400 dpi x 400 dpi : 62 page/min | |
| 300 dpi x 300 dpi : 73 page/min | |
| 150 dpi x 150 dpi : 73 page/min | |
| 100 dpi x 100 dpi : 73 page/min | |
| Scanning Speed (DSDF) | 600 dpi x 600 dpi : 70/120 page/min |
| 400 dpi x 400 dpi : 80/160 page/min | |
| 300 dpi x 300 dpi : 120/240 page/min | |
| 150 dpi x 150 dpi : 120/240 page/min | |
| 100 dpi x 100 dpi : 120/240 page/min | |
| Scan mode | B&W, Greyscale, Colour/ACS, Monochrome |
| File Formats | B&W : TIFF-Multi/Single Page, PDF-Multi/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) |
| Colour/Greyscale : JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF-Multi/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) | |
| ACS : TIFF-Single Page, PDF-Mult/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) | |
| Scan Agent | Scan to File, Scan to E-mail, Scan to e-Filing, Scan to WS Scan, Scan to USB |
| Max. Original Size | A3 |
| Resolution | 2400 dpi x 600 dpi (with smoothing) |
| Multiple Copy Qty | 1 to 999 |
| First Copy |
Less than 5.9s BK (eS3508LP) Less than 7.8s EB Less than 4.4s BK (eS4508LP) Less than 7.8s EB |
| Zoom Range | (Original on glass) 25% to 400% (1% Increment) |
| (Original on RADF) 25% to 200% (1% Increment) | |
| (Original on DSDF) 25% to 200% (1% Increment) | |
| Copy Mode |
BK: Text/Photo(Default), Text, Photo ,Blue Original EB: Text/Photo, Text, Photo, Blue Original (Default) |
| Image Density Control | Automatic/Manual (11 Steps) |
| Compatibility | Super G3, G3 |
| Data Compression Method | JBIG, MMR, MR, MH |
| Modem Speed | 33.6kbps --2.4Kbps (automatic fallback) |
| Transmission Speed | Approx. 3 seconds |
| Broadcast Transmission | Max. 200 Groups 400 Destinations |
| PLATEN COVER | KA-5005PC |
| RADF | MR-3031 |
| DSDF | MR-4000 |
| ADU | Std. |
| Bypass Tray | Std. |
| PFP | KD-1058 |
| Drawer Module for PFP | MY-1048 |
| Envelope cassette Option | MY-1049 |
| LCF | KD-1059 A4 |
| Desk (TSE) | MH-5000 |
| Job Separator | MJ-5014 |
| MJ-5015 | |
| Inner Finisher | MJ-1042 |
| Multi-Staple Finisher | MJ-1109 |
| Saddle Stich Finisher | MJ-1110 |
| Bridge kit (for finishing option) | KN-5005 |
| Hole Punch Unit for Inner Finisher |
MJ-6011N (2 or 3 holes /70mm or 108mm pitch) MJ-6011E (2 holes (80mm pitch) MJ-6011F (4 holes / 80mm pitch) |
| Hole Punch Unit for console Finisher |
MJ-6105N (2 or 3 holes /70mm or 108mm pitch) MJ-6105E (2 holes (80mm pitch) MJ-6105F (4 holes / 80mm pitch) |
| Staple cartridge for Finisher | STAPLE-2400 |
| Staple cartridge for saddle | STAPLE-3100 |
| Work Tray | KK-5005 |
| Manual Pocket (New) | KK-5008 |
| Accessible Arm | KK-2560 |
| Accessory Tray | GR-1250 |
| Panel Ten Key Option | GR-1260 |
System Options / Accessories
| Fax Unit / 2nd Line | GD-1370 EU |
| Wireless LAN /Bluetooth Module | GN-4020 |
| Card Reader Holder | GR-1290 |
| Harness kit for card controller | GQ-1280 |
| Hardcopy Security Kit | GQ-1190A |
| Paper Reusing Device RD-301 | KH-1021AS |
Enabler Options
| Data Overwrite enabler | GP-1070 |
| Meta scan enabler | GS-1010 |
| IPSec enabler | GP-1080 |
| Unicode Font enabler | GS-1007 |
| Embedded OCR enabler | GS-1080 (for 1 License) / GS-1085 (for 5 Licenses) |
| Multi station print enabler | GS-1090 (for 1 License) / GS-1095 (for 5 Licenses) |
