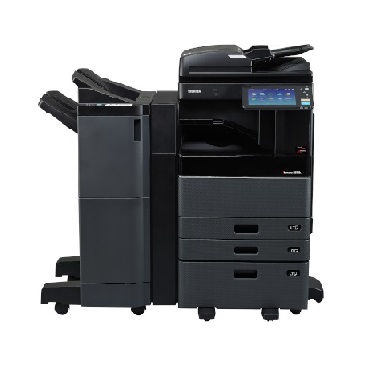

Monochrome - e-STUDIO2518A/3018A
e-STUDIO2518A/3018A
Intuitive usage. Smooth workflows. Excellent quality.
Small to medium workgroups need to get a lot more done often using fewer resources and minimal space. That's the thinking behind the e-STUDIO5008A series, too. Plenty of functions, lots of capacity, and a small footprint with a fresh, new look.
- - Ideal for medium to large sized workgroups
- - Intuitive usage via a 9” customisable tablet-like display
- - Advanced Toshiba e-BRIDGE Next controller technology combined with an impressive resolution of up to 1,200 x 1,200 dpi
The Toshiba e-STUDIO2508A series is designed to put a fast, efficient, secure MFP in the hands of small and medium workgroups. Not only is it reliable, it also produces high-quality type and images.
| Copying/Printing Process | Indirect electrostatic photographic method |
| Print & Copy Speed | 25, 30, 35, 45, 50ppm |
| Warm-up Time Approx. | Approx. 20 seconds |
| Paper size / weights | 1st drawer: A3-A5R/ 60 - 256 gsm |
| 2nd drawer: A3-A5R/ 60 - 256 gsm | |
| Optional Envelope Cassette: | A4R,B5R,A5R/ 60 - 256 gsm |
| 100 X 162 mm - 240 X 380 mm / 60 - 85 gsm (envelops) | |
| ADU: | A3 -A5R/ 60 - 256 gsm |
| PFP (Opt. KD-1058): | A4 / 64 - 105 gsm |
| LCF (Opt. KD-1059LT): | A4 / 64 - 105 gsm |
| Stack Feed Bypass | Single-Feed : A3 - A5R / 52 - 256 gsm |
| Multi-Feed : A3 - A5R / 60 - 256 gsm | |
| RADF | |
| Simplex : | A3 - A5 / 35 - 157 gsm |
| Duplex : | A3 - A5 / 50 - 157 gsm |
| DSDF | |
| Simplex : | A3 - A5 / 35 - 209 gsm |
| Duplex : | A3 - A5 / 35 - 209 gsm |
| Paper Capacity | Standard |
| Drawer: | 550 sheets x 2 |
| Stack Feed Bypass: | 100 sheets |
| - Optional | Optional PFP: |
| Optional PFP: | 550 sheets |
| Optional drawer for PFP: | 550 sheets |
| Optional LCF (Pedestal type): | 2000 sheets |
| Optional envelope cassette: | 550 sheets |
| Max. Paper Capacity | 3,200 sheets(*) (w/Optional LCF) |
| Processor | Intel E3825 1.33GHz(Dual Core) |
| Memory | 4GB (Main memory + Page memory) |
| HDD | 320 GB Toshiba Secure HDD |
| Dimensions | W585×D585×H787 (mm) (W/ ADU and SFB ; Std.) |
| Weight | Approx. 55 kg (Incl. Drum / Developer) |
| Power Consumption | Max. 2.0kW (220 - 240V) |
| Super sleep: 0.7W |
| Resolution | 600 dpi x 600 dpi, 1bit |
| 2400 dpi x 600 dpi (with smoothing) | |
| 3,600 dpi x 1,200 dpi (with smoothing)(PS Driver) | |
| Page Description Language | PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG |
| Operation Systems | Windows Vista SP2 (32 bit)(64 bit) |
| Windows 7 SP1 (32bit)(64bit) | |
| Windows 8/8.1 (32 bit)(64 bit) | |
| Windows 10 (32 bit)(64 bit) | |
| Windows Server 2008 SP2 (32 bit)(64 bit) | |
| Windows Server 2008 R2 SP1 (64 bit) | |
| Windows Server 2012/R2 (64 bit) | |
| Supported OS (Macintosh) | Max OS X 10.4.11, 10.5.7, 10.7.4, 10.8, 10.9, 10.10, 10.11 |
| Supported OS (Unix Filter) | Solaris ( SUN ) V10, 11, HP-UX Ver 11.iv3, AIX ( IBM ) 7.x |
| Supported OS (Linux) | Yes (Redhat Enterprise 5.x,6.x,7.x) |
| Fedora Ver 21,22 | |
| SuSE Linux Enterprise Server Ver.11,12 | |
| Open SuSE Ver.13.1,13.2 | |
| Ubuntu 14.04LTS,15.04 | |
| Debian 7.8, 8 | |
| Interface | 10/100/1000baseT (Std.), USB 2.0 High Speed, Host x 4（Front : Outside x1, Internal x 3(Opt)) |
| Resolution | 600 dpi x 600 dpi |
| Scanning Speed (RADF) | 600 dpi x 600 dpi : 50 page/min |
| 400 dpi x 400 dpi : 62 page/min | |
| 300 dpi x 300 dpi : 73 page/min | |
| 100 dpi x 100 dpi : 73 page/min | |
| Scanning Speed (DSDF) | 600 dpi x 600 dpi : 70/120 page/min |
| 400 dpi x 400 dpi : 80/160 page/min | |
| 300 dpi x 300 dpi : 120/240 page/min | |
| 100 dpi x 100 dpi : 120/240 page/min Duplex/Simplex | |
| Scan mode | B&W, Greyscale, Colour/ACS |
| File Formats | B&W : TIFF-Multi/Single Page, PDF-Multi/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) |
| Colour/Greyscale : JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF-Multi/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) | |
| ACS : TIFF-Single Page, PDF-Mult/Single Page, XPS-Multi/Single Page, DOCX-Multi/Single Page(Opt.), XLSX-Multi/Single Page(Opt.), PPTX-Multi/Single Page(Opt.) | |
| Scan Agent | Scan to File, Scan to E-mail, Scan to e-Filing, Scan to WS Scan, Scan to USB |
| Max. Original Size | A3 |
| Resolution | 2400 dpi x 600 dpi (with smoothing) |
| Multiple Copy Qty | 1 to 999 |
| First Copy | Less than 4.3 seconds |
| Zoom Range | (Original on glass) 25% to 400% (1% Increment) |
| (Original on RADF) 25% to 200% (1% Increment) | |
| (Original on DSDF) 25% to 200% (1% Increment) | |
| Copy Mode | Text, Text/Photo(Default), Photo ,Custom |
| Image Density Control | Automatic/Manual (11 Steps) |
| Compatibility | Super G3, G3 |
| Data Compression Method | JBIG, MMR, MR, MH |
| Modem Speed | 33.6kbps --2.4Kbps (automatic fallback) |
| Transmission Speedy | Approx. 3 seconds |
| Broadcast Transmission | Max. 200 Groups 400 Destinations |
| KA-5005PC | Platen Cover | |
| MR-3031 | Reversing Auto Document Feeder (RADF) | |
| MR-4000 | Dual Scan Document Feeder (DSDF) | |
| KD-1058 | Paper Feed Pedestal (PFP) | |
| MY-1048 | Drawer Module for PFP | |
| MY-1049 | Envelope Cassette Option | |
| KD-1059 A4 | Large Capacity Feeder (LCF) | |
| MH-5000 | Desk | |
| MJ-5014 | Job Separator | |
| MJ-1042 | Inner Finisher | |
| MJ-1109 | Multi-Staple Finisher | |
| MJ-1110 | Saddle Stitch Finisher | |
|
Fax Unit / 2nd Line |
Enablers
| GM-2280 | Printer / Scanner Enabler |
| GP-1070 | Data Overwrite Enabler |
| GS-1010 | Meta Scan Enabler |
| IPSec enabler | GP-1080 |
| GS-1007 | Unicode Font enabler |
| GS-1080 (for 1 License) | Embedded OCR enabler / GS-1085 (for 5 Licenses) |
| GS-1090 (for 1 License) | Multi Station Print Enabler / GS-1095 (for 5 Licenses) |
